Dryheatsterlizer-GMPModel (Chamber) Material Of Construction
Inside body 2 mm thk SS 316 quality. & outside Body 2 mm thk. SS 304 Quality.
Body
Fabricated in double walled constructionS. S.304 quality framework from inside & outside the unitmounted onrigid steelframework, the gap in between the two walls is filled with thick fiber glass wool for insulations.
Then it is also provided with air inlet-outlet, air filter, Insulated door inter locking with limit switch door, carriage trolley, floor trolley etc.
Unitis provided with a double door at the front & back side (For sterilizer & Non-sterilizer area.)
The door lips will have silicon gasket prevent the leakage.
Intel Ahu. With Suction Blower Assembly
Blower interior fabricated from S.S. 304 quality material dynamically balanced housed in S.S. 304 quality Scroll
It is driven by 0.5HP/2800RPM/415 V/50Hz/AC Supply Non-flame proof Motor.
The inlet air is passed through 5 micron, 10 micron filters & cooling coil.

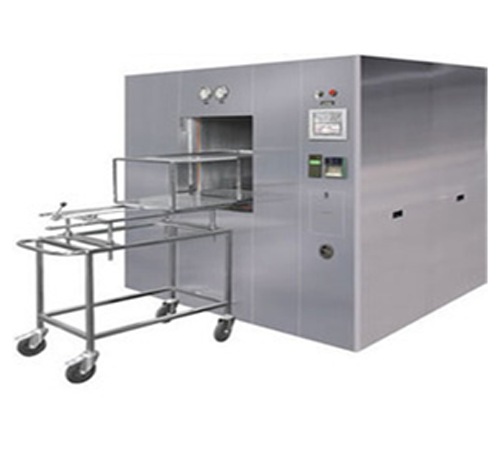

DRY HEAT HORIZONTAL RECTANGULARSTERILIZER WITH BLOWER PUMP, PLC, MICROPROCESSOR PANEL
Heaterassmbly Electricheating
Air entering the drier is heated by tubular electric fin heaters of 1.5 Kw each.
Total heating load will be14 KW. The total heating load will be divided into four heating zones.
Temperature of inlethotairis controlled by Digital temperature controller cum indicator.
Cooling Coilassmbly
Fabricated from SS 304 quality material.
Air entering the drier is cooling by cooling coil.
Cooling pressure3.5kg./cm
Cooling Temperature of inlethotairis controlled by Digital temperature controller cum indicator
Inlet Blower Assembly
Blower interior fabricated from SS 304 quality material dynamic all balanced house din S.S. 304 quality Scroll.
Improved impeller drive system with high temperature bearings and motor mounting arrangement for lower vibration and sound levels.
It is driven by 1.5 HP/1400 RPM/415 V/50 Hz/AC Supply Non-flame proofs Motor.
Air circulation inside the sterilizer chamber will be by this blower assembly.
Handling Accessories
Fabricated Form S.S.304 quality these cassettes are designed to ensure maximum penetration of the sterilizing medium.
| Chamber | Sr. No. | Width | Height | Depth | Volume(m2/ft) | Capacity(liter) |
|---|---|---|---|---|---|
| 1 | 450mm | 450mm | 900mm | 0.18/6.75 | 180 |
| 2 | 600mm | 600mm | 1200mm | 0.432/16 | 432 |
| 3 | 600mm | 600mm | 1500mm | 0.54/20 | 540 |
| 4 | 900mm | 600mm | 1500mm | 0.81/20 | 810 |
Dry heat horizontal rectangular sterilizers are a reliable and effective method for sterilizing a variety of items, including medical instruments, laboratory equipment, and industrial parts. In this article, we will explore the leading manufacturer of these sterilizers located in Ahmedabad, India, and the top-quality products they produce.
Sterilization is the process of killing or removing all forms of life, including microorganisms, from an object or surface. This is often necessary to prevent the spread of infection or to ensure that certain materials, such as medical instruments and laboratory equipment, are free of contamination. There are several methods of sterilization, including steam sterilization, moist heat sterilization, and dry heat sterilization. Dry Heat Horizontal Rectangular Sterilizer is often used when materials may be damaged by steam or moist heat, such as electronic devices or powders.
The dry heat horizontal rectangular sterilizer manufacturer in Ahmedabad has been in business for over two decades and is well-respected in the industry for their commitment to producing reliable, long-lasting products. Their sterilizers are used in a variety of industries, including the medical, laboratory, and industrial sectors.
The dry heat horizontal rectangular sterilizers produced by this manufacturer are designed with both efficiency and durability in mind. The user-friendly control panel and spacious chamber size make them easy to use and able to accommodate a wide range of items. They also have a stainless steel construction, ensuring that they can withstand daily use and maintain their effectiveness for years to come.
In addition to being durable, the dry heat horizontal rectangular sterilizers from the manufacturer in Ahmedabad are also energy efficient. They use a unique heating system that reduces energy consumption and costs, making them an environmentally friendly choice.
There are several benefits to using dry heat sterilization, including:
It is effective at killing a wide range of microorganisms, including bacteria, viruses, and fungi.
It is suitable for a variety of materials, including those that may be damaged by steam or moist heat.
It does not require the use of water or other liquids, making it a good choice for materials that may be damaged by moisture.
It is generally faster and requires less time than other methods of sterilization.
Overall, dry heat sterilization is a reliable and effective method for ensuring that materials are free of contamination and safe for use.
The dry heat horizontal rectangular sterilizers manufacturer in Ahmedabad offer several advantages over other sterilization methods and equipment. Some of the benefits of using these sterilizers include:
They are easy to use and maintain, with a user-friendly control panel and durable stainless steel construction.
They have a large chamber size, allowing them to accommodate a wide range of items.
They are energy efficient, using a unique heating system that reduces energy consumption and costs.
The manufacturer in Ahmedabad is known for producing high-quality, reliable products and for their commitment to customer satisfaction.
Overall, the dry heat horizontal rectangular sterilizers from the manufacturer in Ahmedabad are a smart choice for businesses and individuals looking for an effective and efficient method of sterilization.
If you're in need of a dry heat horizontal rectangular sterilizer, the manufacturer in Ahmedabad is a top choice. Their high-quality products, combined with their commitment to customer satisfaction, make them a reliable choice for businesses and individuals in a variety of industries.
